NFPA Entrance Unit

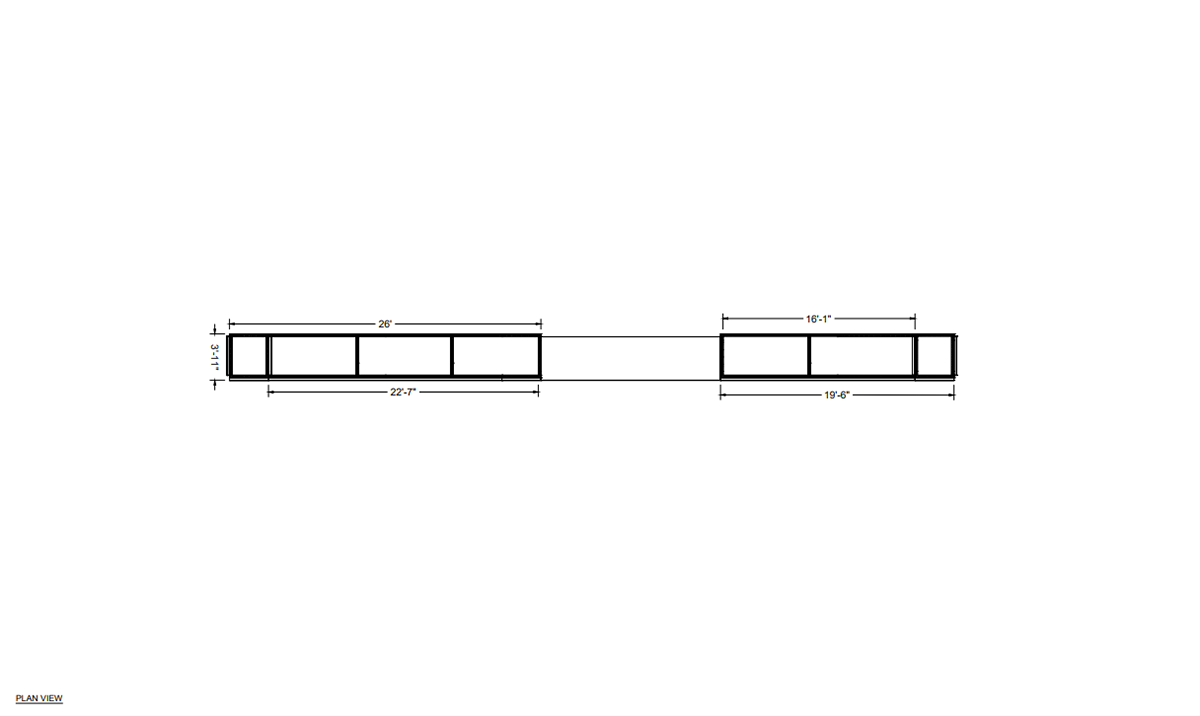

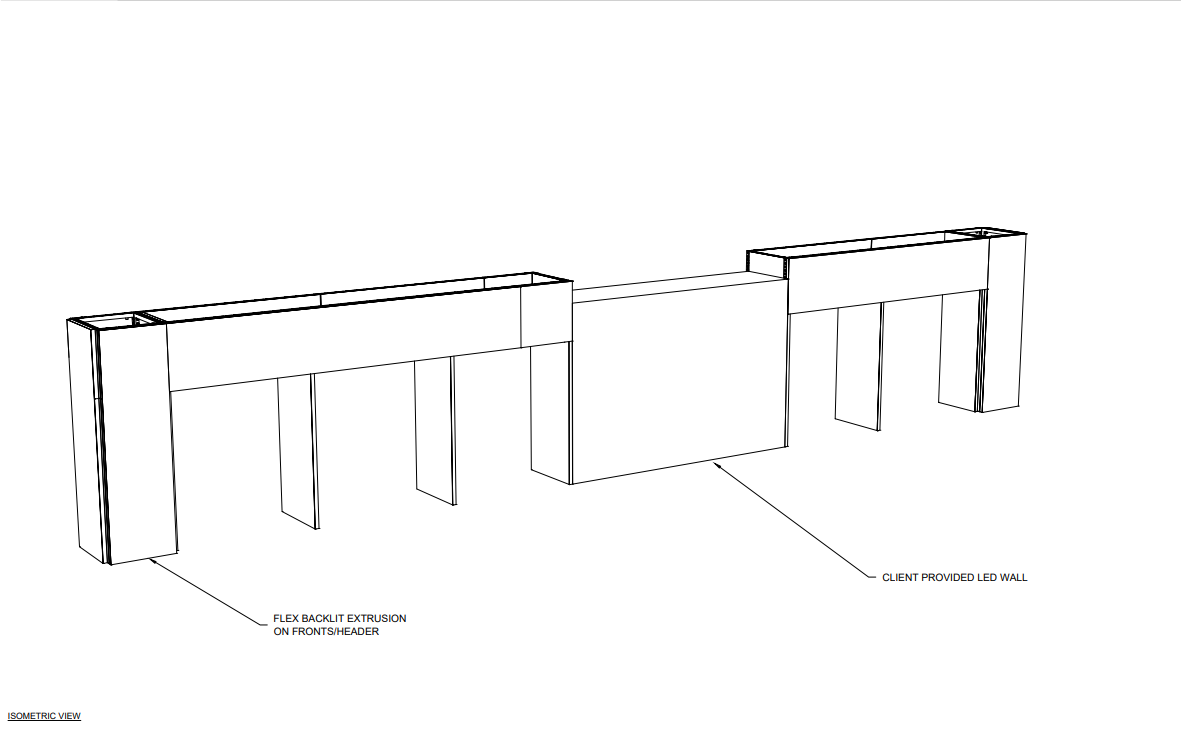

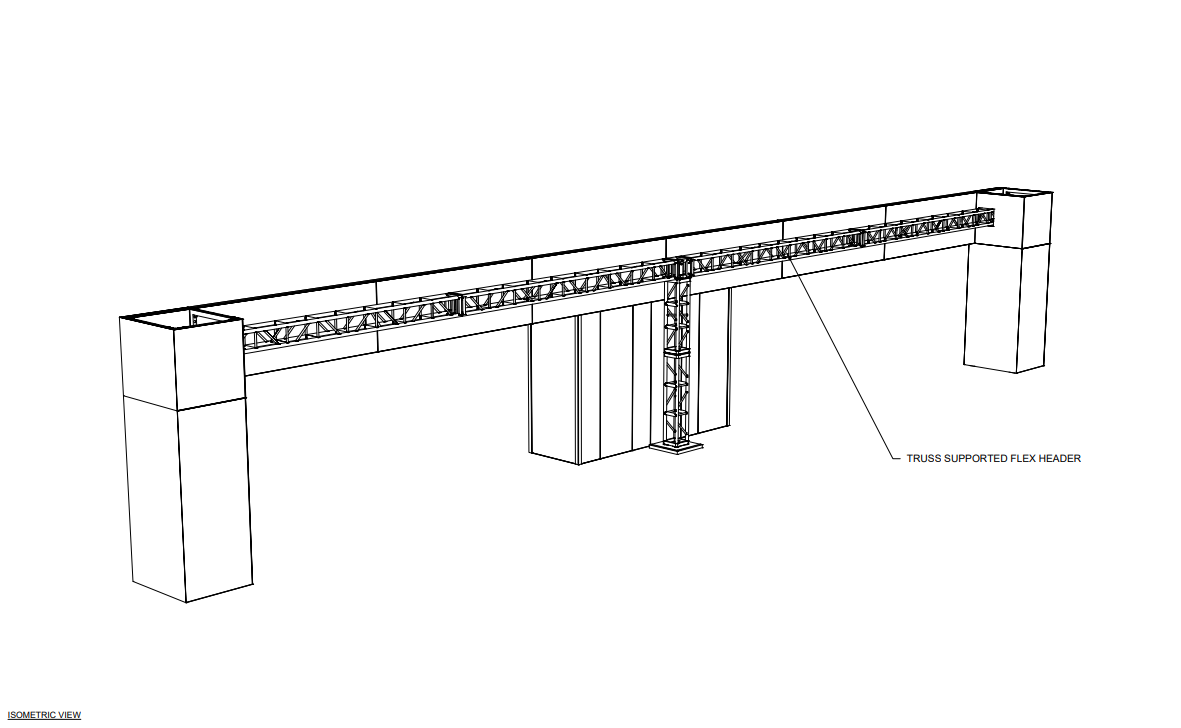

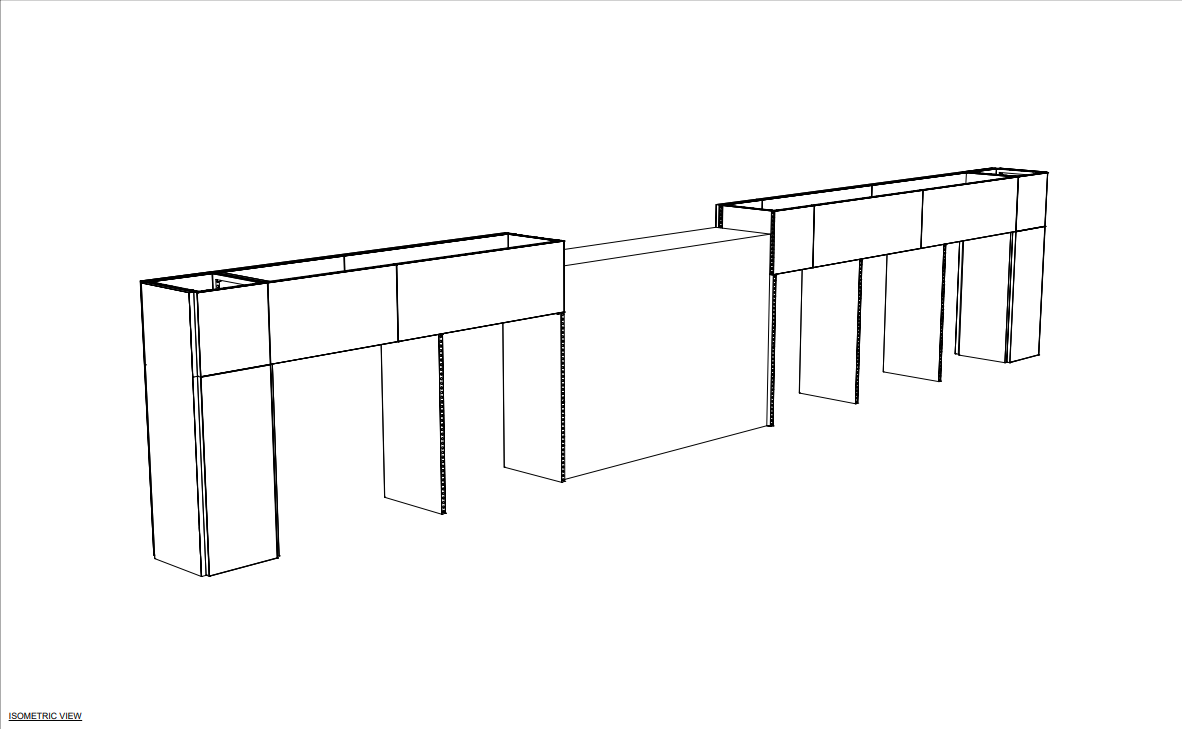

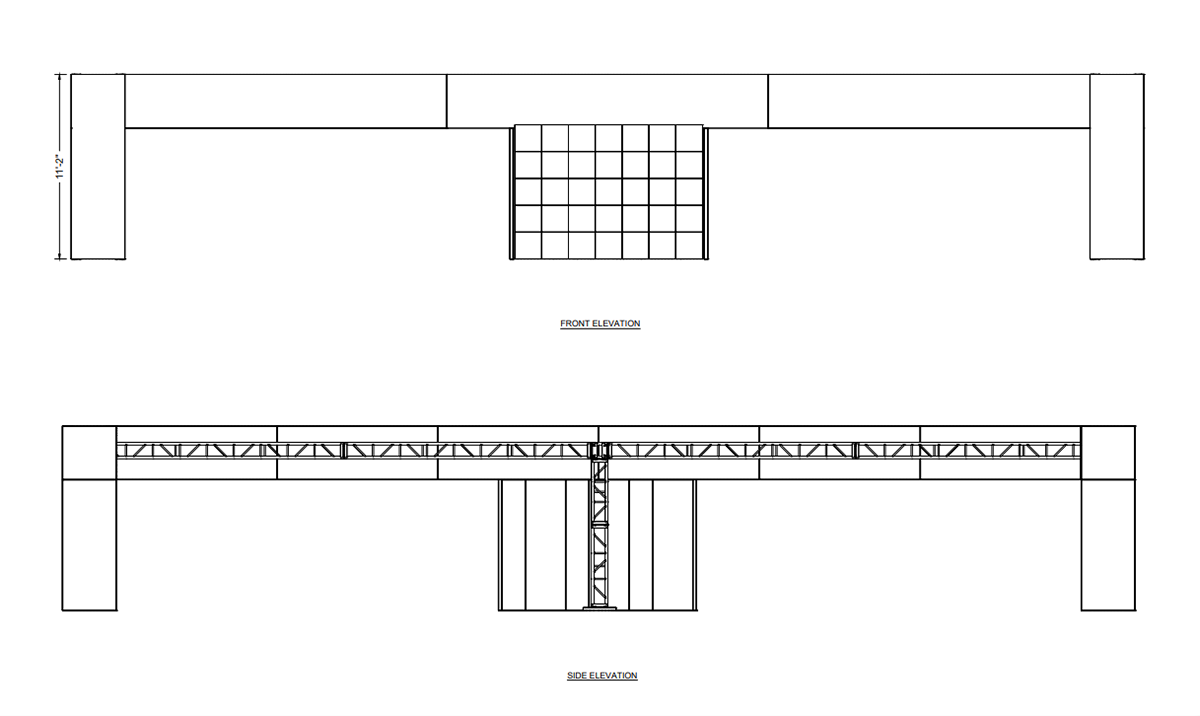

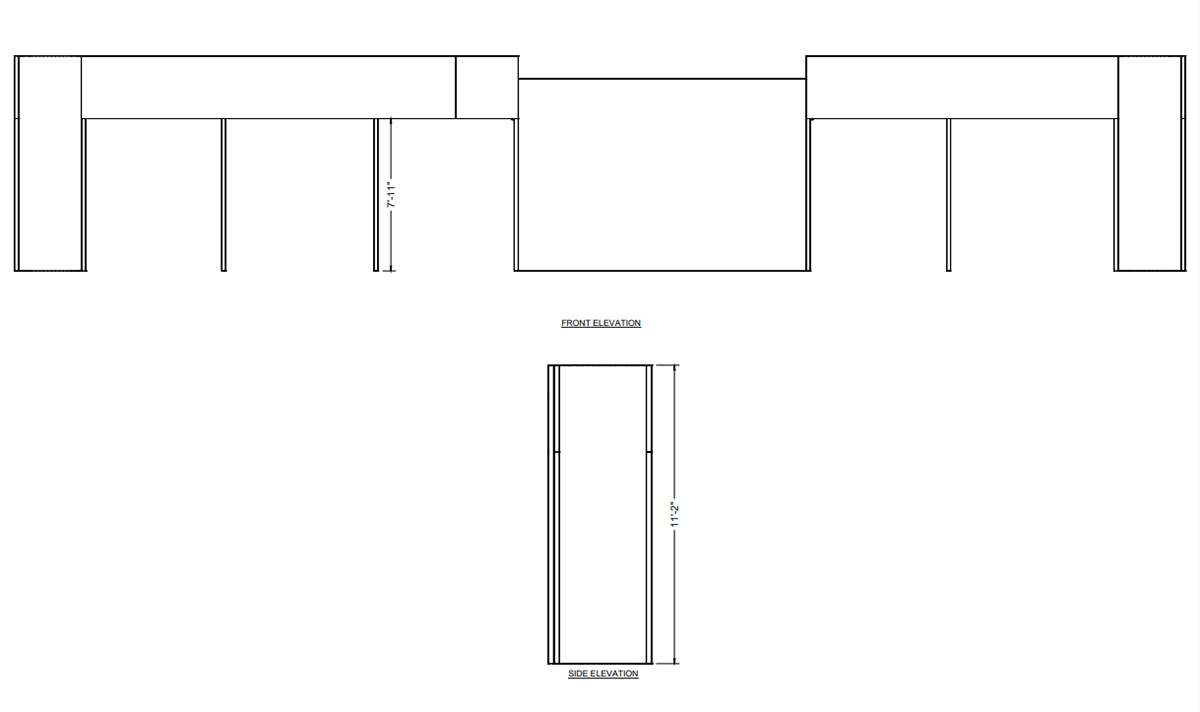

This is a B&W Drawing for a Custom Entrance Unit for the NFPA show in Las Vegas, Nevada. The included images show the before (left) and after (right) as I worked with the client and sales person to tune the structure for the show. The initial design due to it's large span featured the use of truss to support the Bematrix Structure. The final product of this design opted to use vertical blades to support the structure while also allowing graphic opportunities to be used on the back of the structure while also making room for the client provided LED screen to be flush with the structure. Both versions featured the use of a custom lightbox solution for our Bematrix system.
